Z80 Build From Scratch

Next?

We have built our basic Z80 system and confirmed everything is working by burning a ROM and watching the results on LEDs.

What we really need is a serial connection from our system to a terminal emulator we can run on our PCs.

We prefer to use TeraTerm v4.101 with our Z80 builds. It's easy to setup and run.

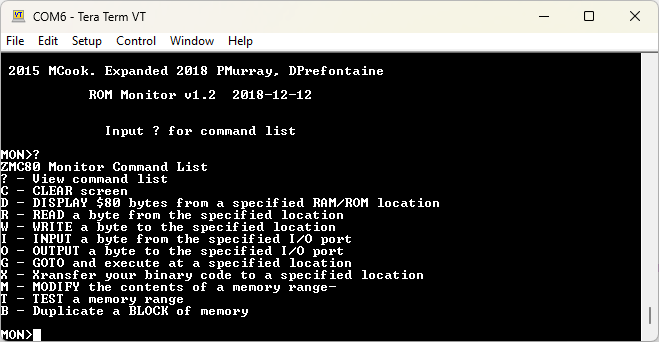

Example: TeraTerm Serial Connection to Z80

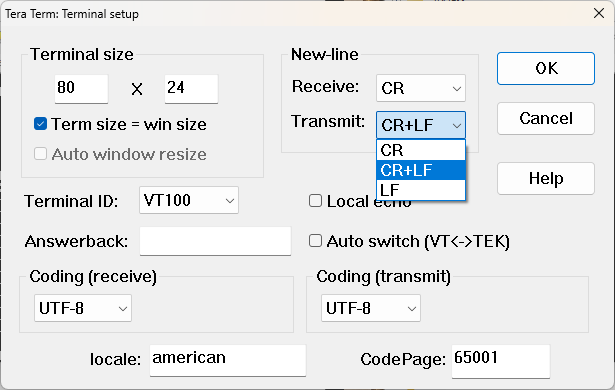

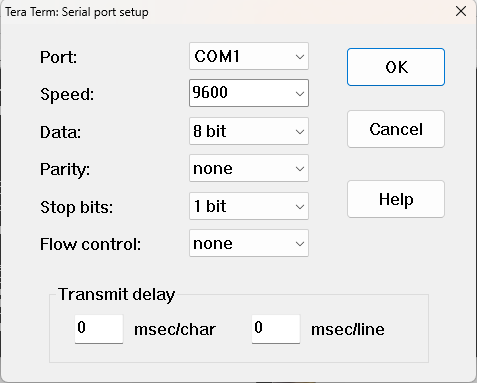

Example: TeraTerm Config for Serial Port and Terminal Setup
