Project 51:
ESP32-C3 Nite Lite

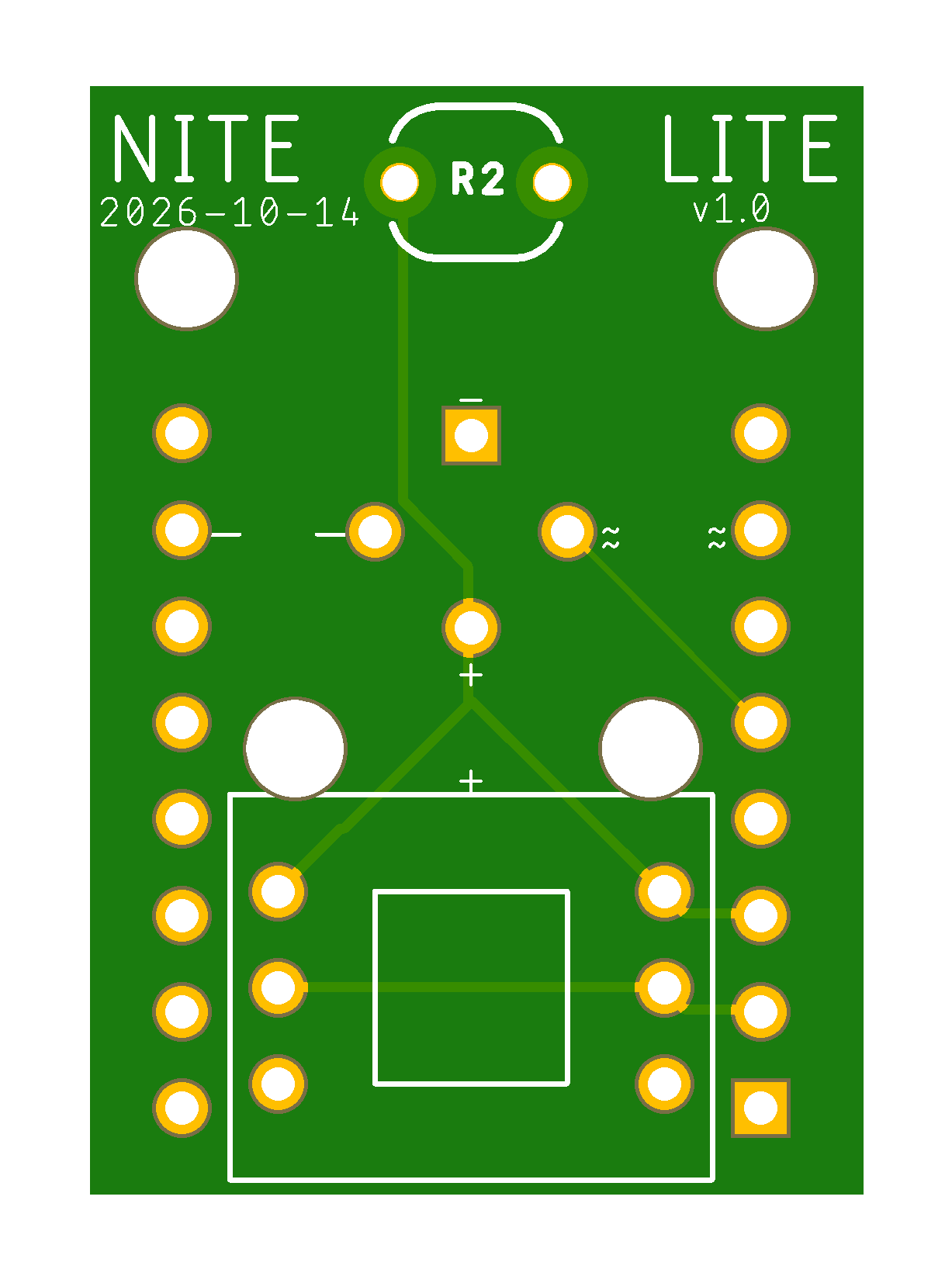

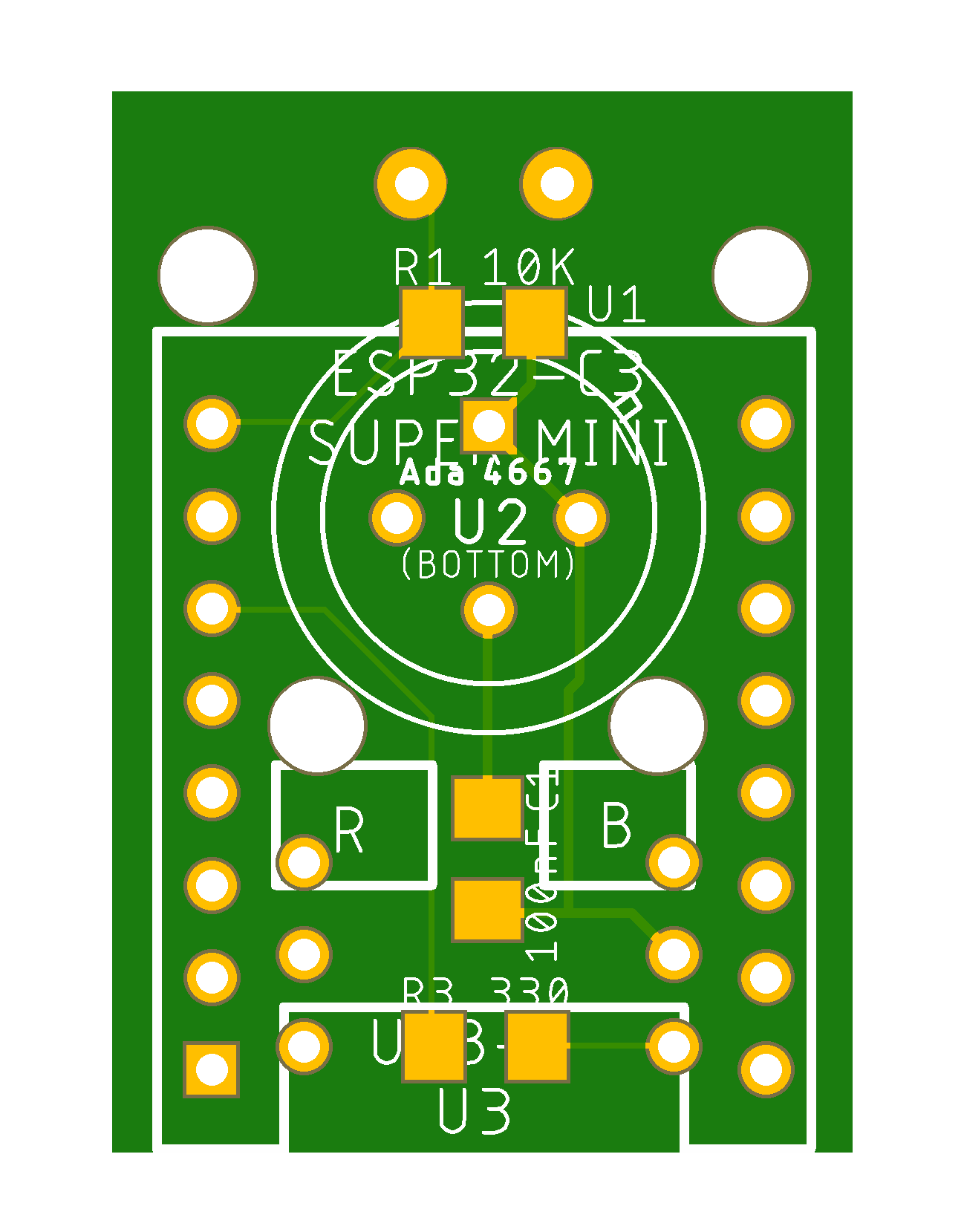

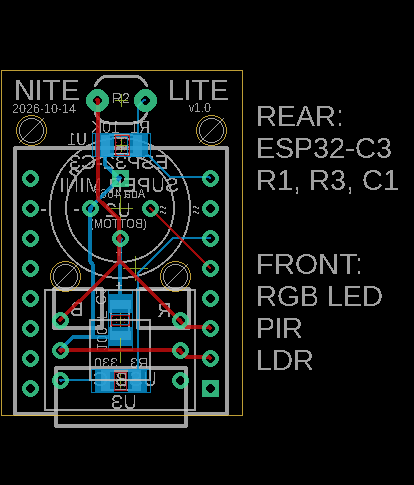

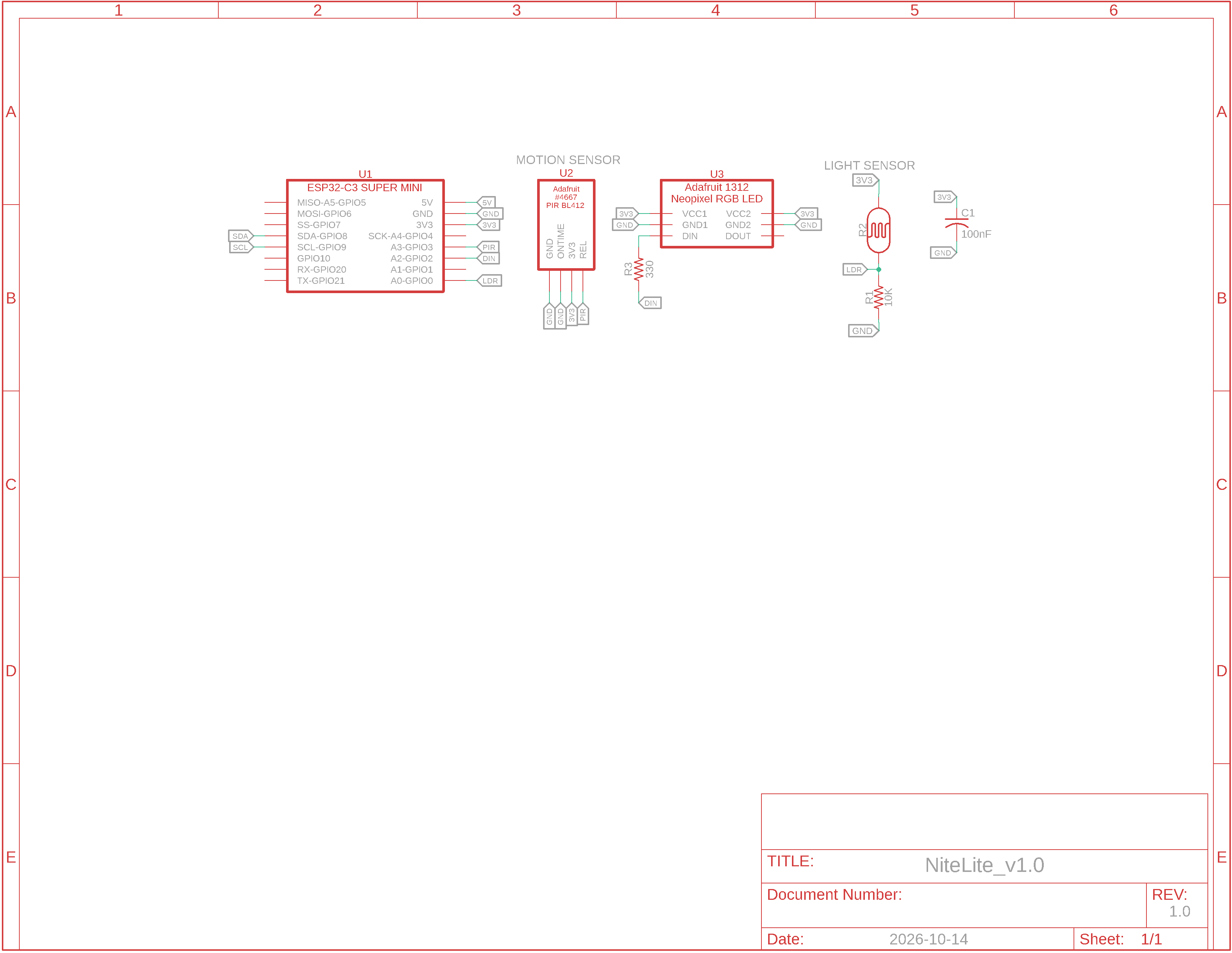

 v1.0 Schematic, Board Layout,  PCB Top & Bottom

(Click to enlarge)

v1.0 BOM

Overview:

The ESP32-C3 Nite Lite turns on at sunset and turns off at sunrise. The light will be white.

During the day if the surroundings are dark and motion is detected, the Nite Lite will turn on. The light will be blue.

Features:

 - ESP32-C3 Super Mini microcontroller

 - RGB LED

 - LDR light sensor

 - PIR motion sensor

Your Contribution:

Provide your primary and secondary (your phone HotSpot) WiFi credentials, as well as your location by Googling "gps coordinates for my address".

Code: NL_v1g.ino
