Project 47:
ESP32-CYD Weather Monitor

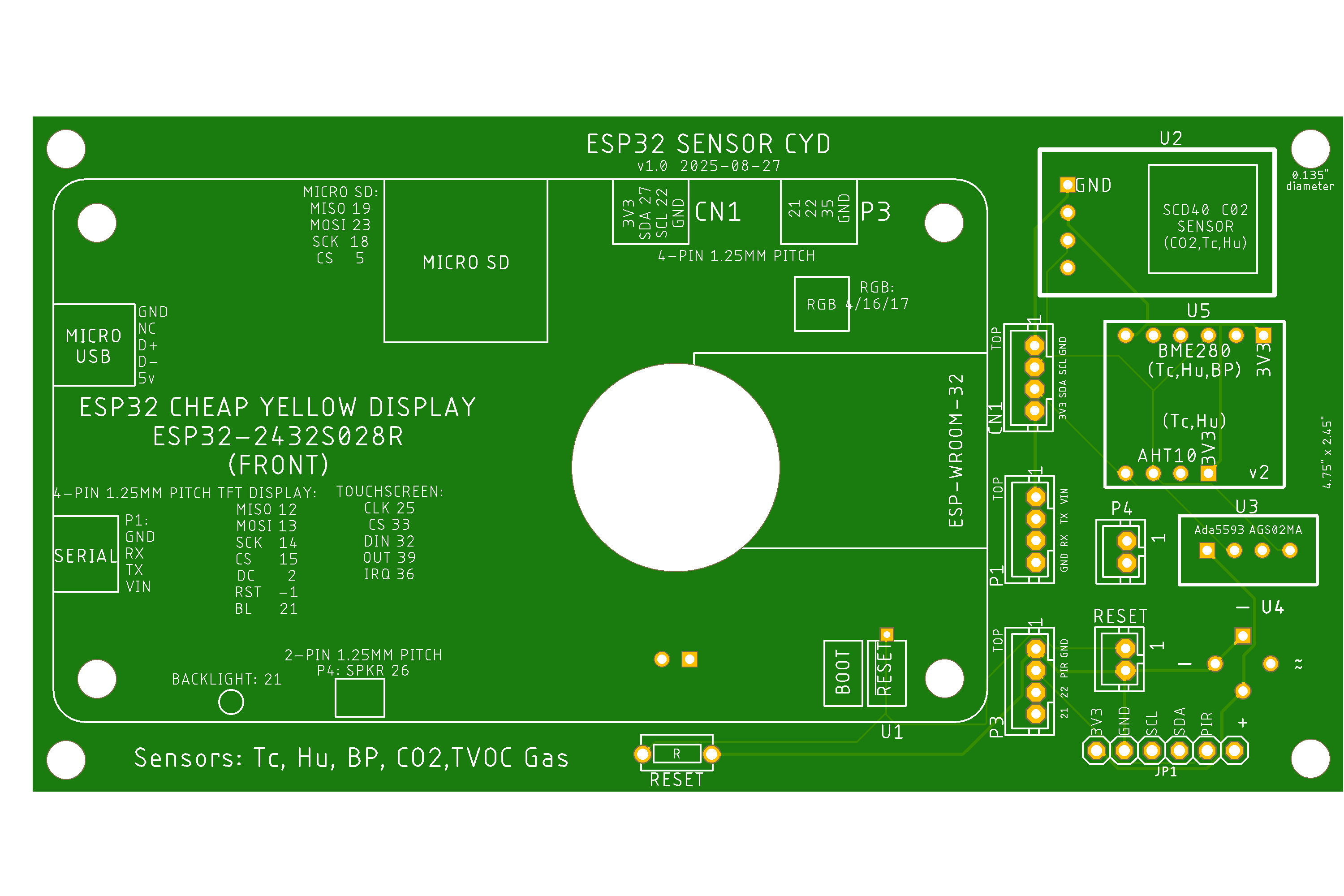

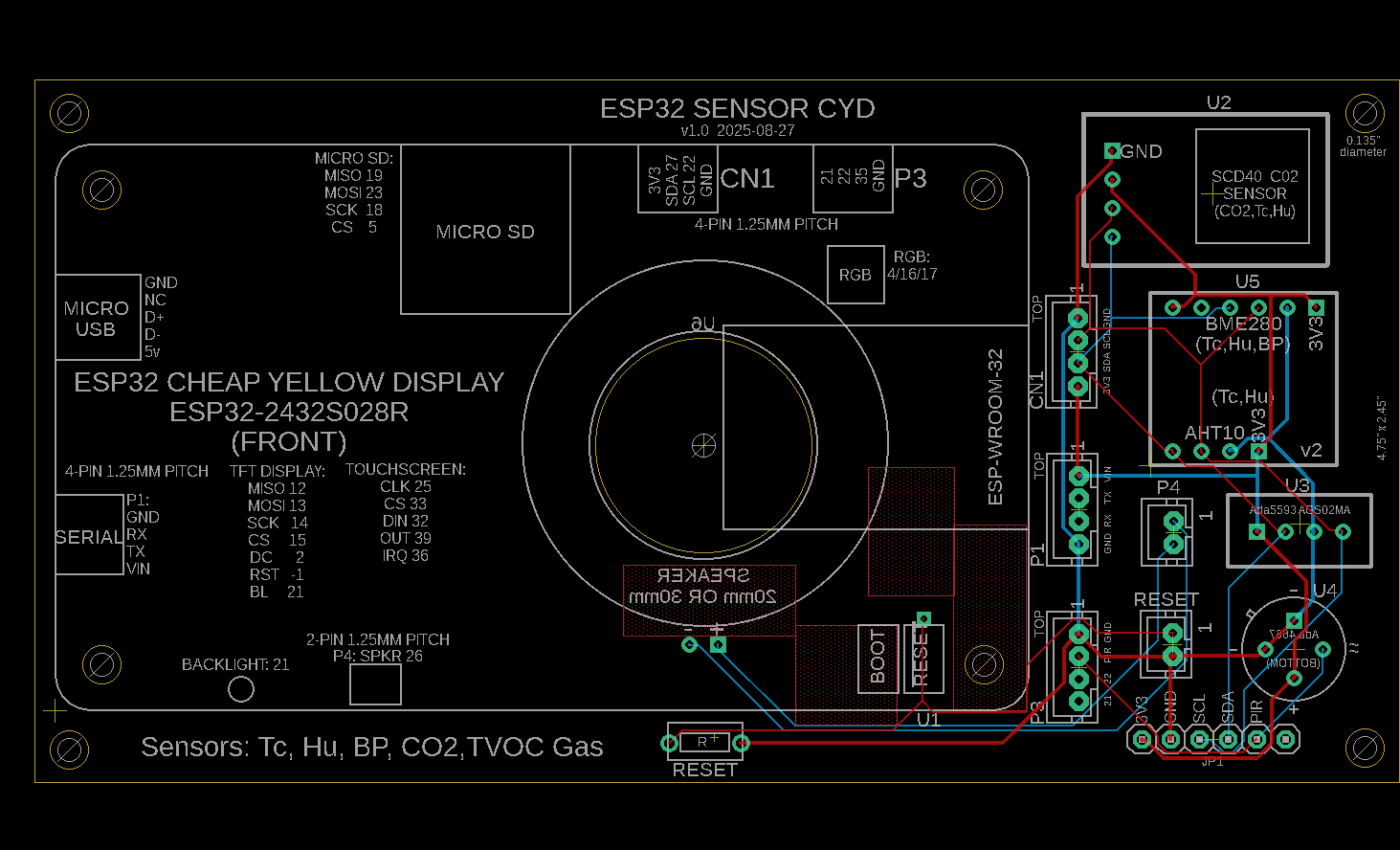

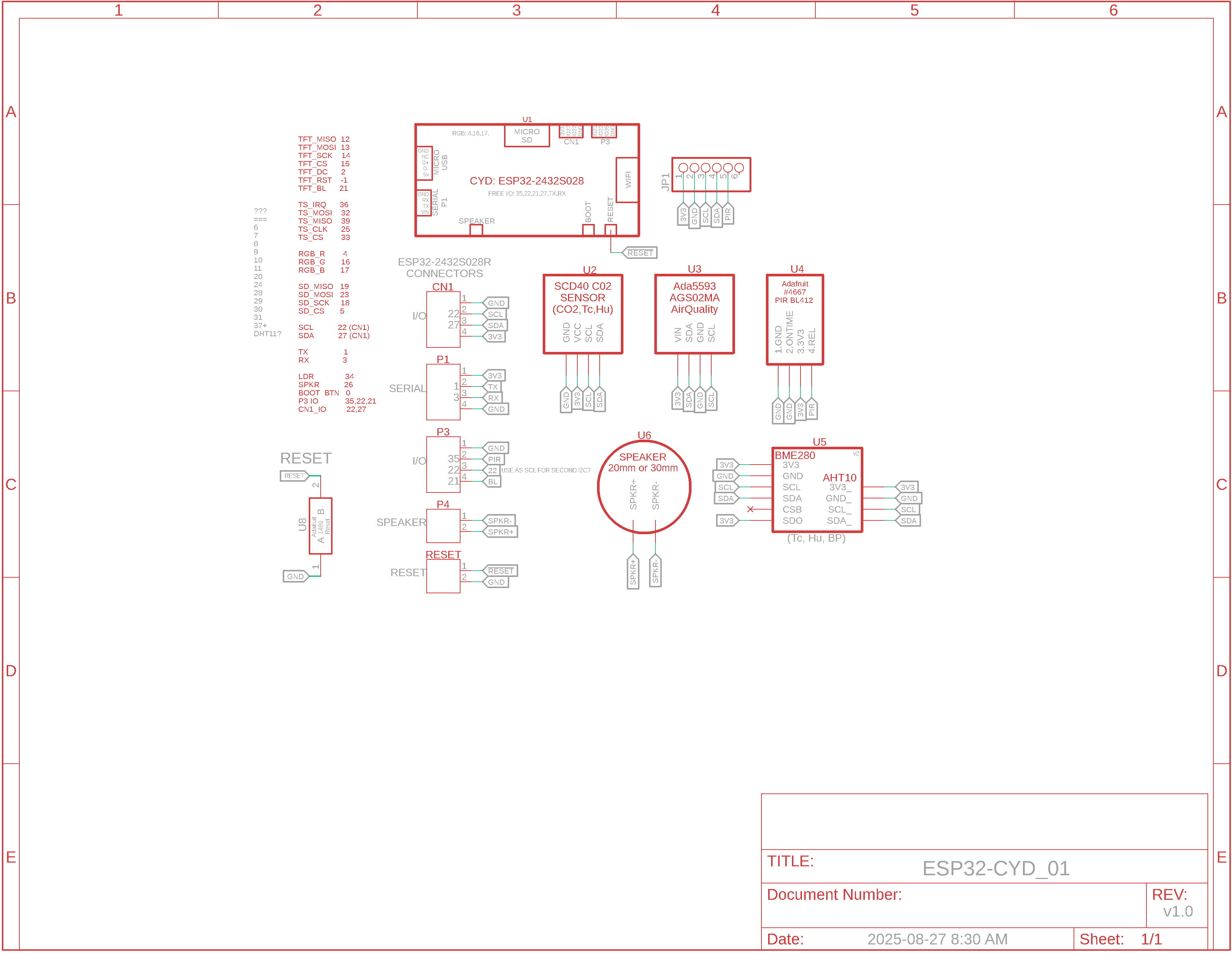

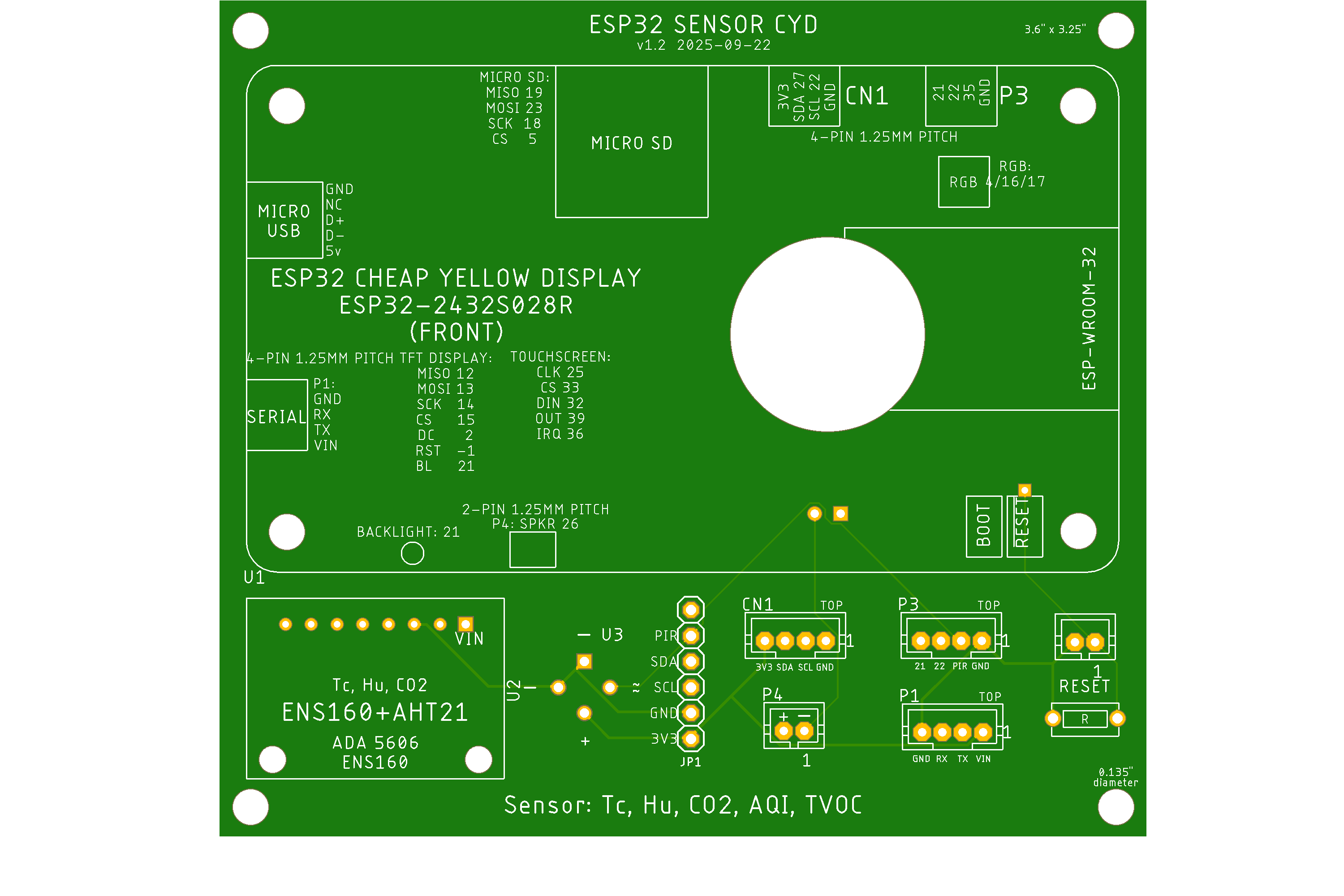

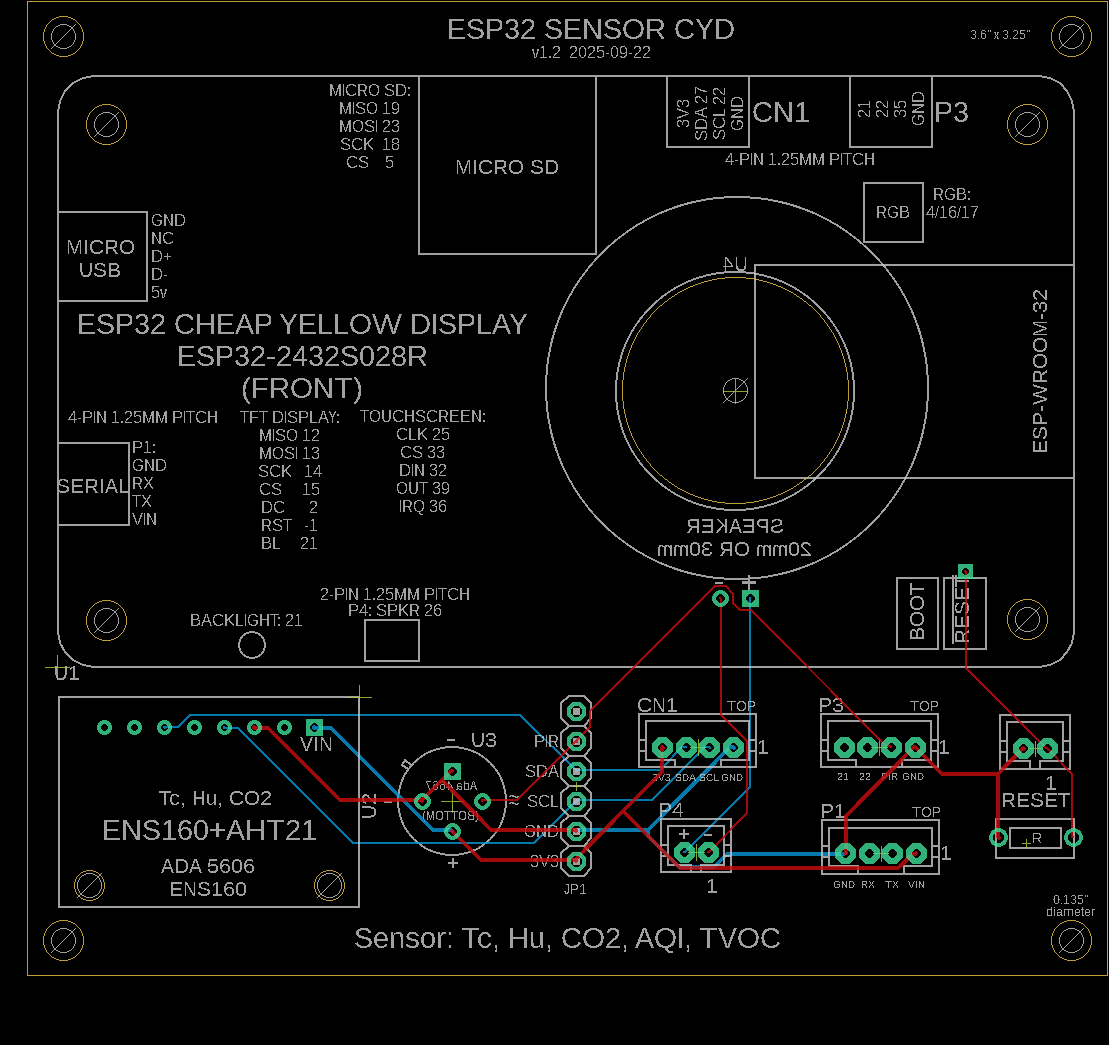

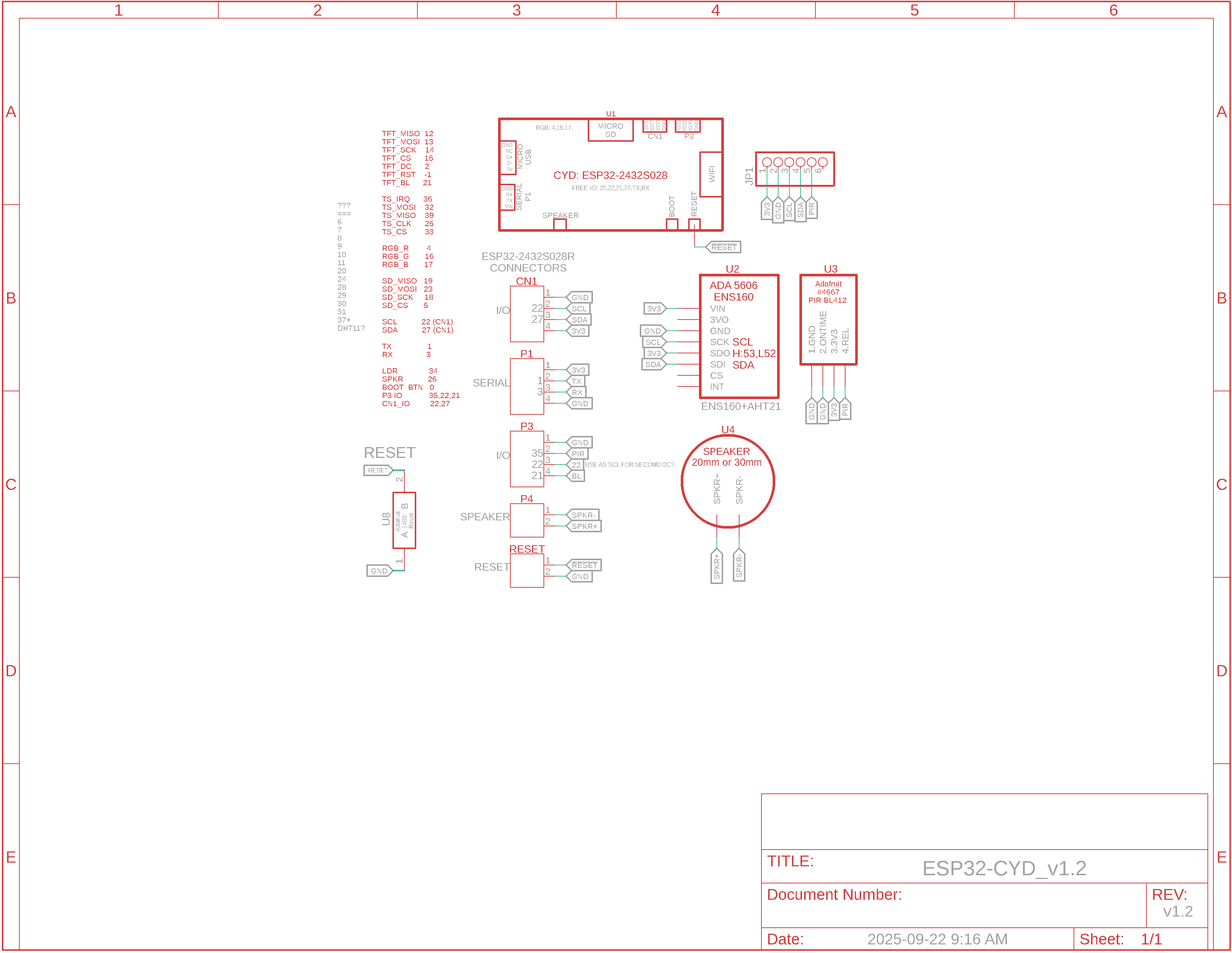

 v1.0 Schematic, Board Layout, Top PCB

v1.0 BOM

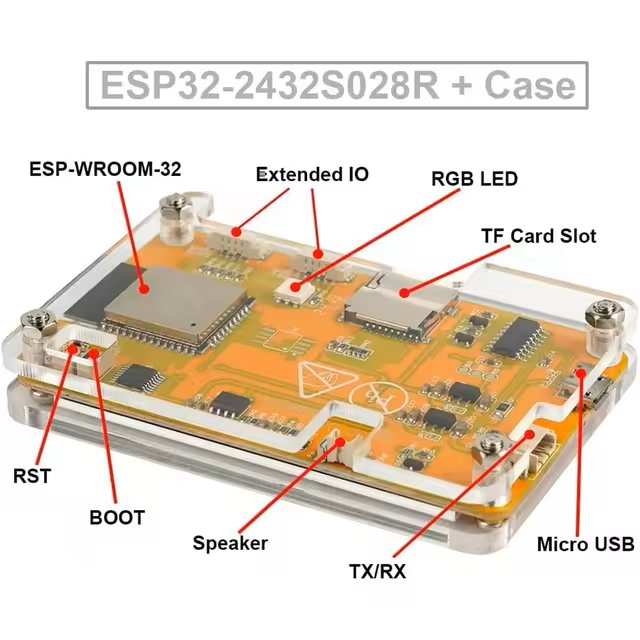

Layout of ESP32-CYD

Video of v1.0 System

(click to enlarge)

Overview:

Inside and outside weather stats are shown on a 2.8" TFT touchscreen display with an onboard ESP32-WROOM-32, and are stored on a micro SD drive.
API calls for the current weather are made to Open-Meteo

Measurements:

- Date & time

- Inside and outside: Temperature (C/F), humidity %, barometric pressure kPa

- Current conditions, e.g., mist, cloudy, etc.

- Wind

- Wind chill / humidex

Forecasting includes daily and weekly:

- Daily temp High and Low, PoP

- Sunrise, sunset times

Other Features:

WiFi SSID, IP address, channel, RSSI receive strength, transmit strength

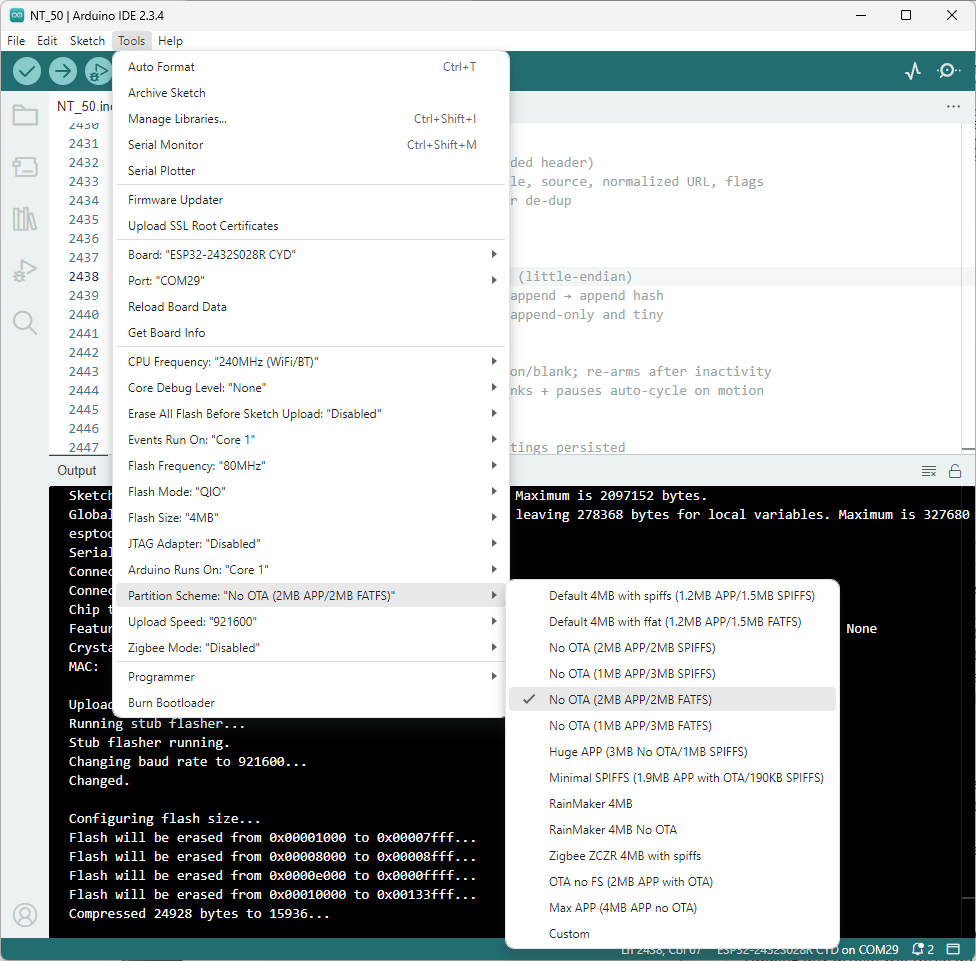

Arduino Code: CYD_WM.zip
